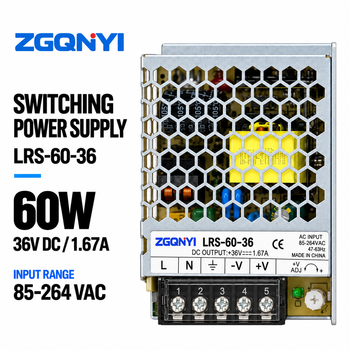

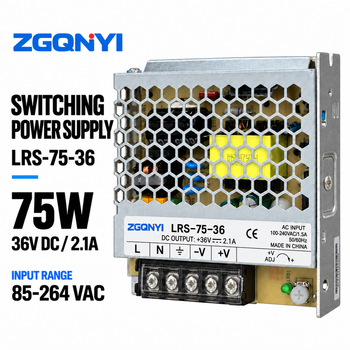

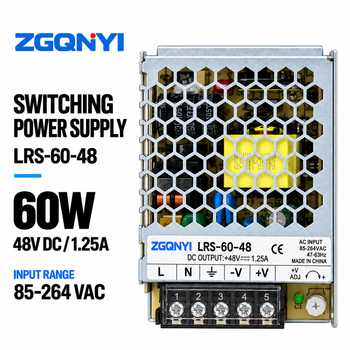

Wenzhou Nuvros Electric Co., Ltd. manufactures the LRS series switching power supply line to meet strict international standards for low-profile enclosures. Featuring a 30mm miniature profile, 100% full-load burn-in testing, and high surge withstand capability up to 300VAC input for 5 seconds, this family is the industry standard for space-critical electronic installations.
| Series Parameter | LRS-35 to LRS-75 | LRS-100 to LRS-150 | LRS-200 to LRS-350 | LRS-450 to LRS-500 |
|---|---|---|---|---|
| AC Input Range | 85 ~ 264VAC universal | 85 ~ 264VAC universal | 115VAC/230VAC by switch | 90 ~ 264VAC with PFC |
| DC Output Available | 5V, 12V, 15V, 24V, 36V, 48V | 5V, 12V, 15V, 24V, 36V, 48V | 12V, 24V, 36V, 48V | 12V, 24V, 36V, 48V |
| Profile Height | 30mm ultra-low profile | 30mm ultra-low profile | 30mm ultra-low profile | 30mm ultra-low profile |
| Protections | Short circuit / Overload / Over voltage / Over temperature (hiccup / constant limit recovery) | |||
| Cooling Method | Natural convection | Natural convection | Convection / internal forced air | Built-in DC fan (thermostat control) |
| Withstand Voltage | I/P-O/P: 3.75KVAC, I/P-FG: 2.0KVAC, O/P-FG: 0.5KVAC (1 minute) | |||
| Certifications | CE, RoHS compliant on applicable catalog configurations | |||
Located in Tangxia Industrial Zone, North Baixiang Town, Yueqing City.
Experienced power design engineers providing custom OEM/ODM solutions.
Automated SMT, wave soldering, and computer-controlled burn-in rigs.
Average response within 1 hour during business hours with 100% response rate.
Wenzhou Nuvros Electric Co., Ltd. provides comprehensive engineering customization for volume buyers, including modified output taps, conformal coating for humid environments, and dedicated OEM packaging.
